Technical data

Introduction

This chapter contains information on the following subjects:

Vehicle identification data
Engine data
Dimensions
Performance figures

The vehicle data sticker in the service schedule or the vehicle registration documents show which engine is installed in your vehicle.

All data in the official vehicle documents take precedence over these data. All data in this manual apply to the basic model. The figures may be different if additional equipment is fitted, for different models, for special vehicles and for other countries.

Additional information and warnings:

Vehicle identification data

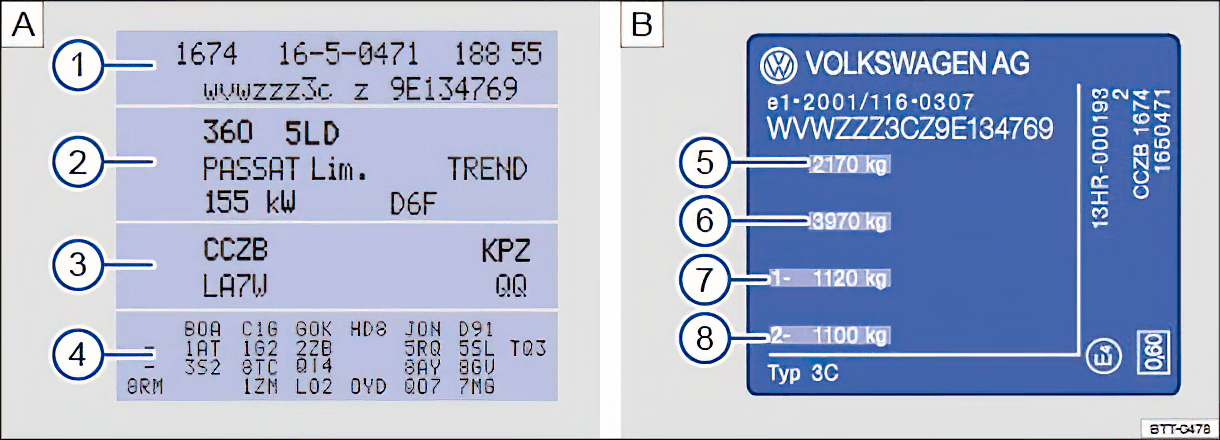

Fig. 15 A: Vehicle data sticker: example shows a vehicle with engine code CCZB (3). B: Type plate

Fig. 15 A: Vehicle data sticker: example shows a vehicle with engine code CCZB 3. B: Type plate

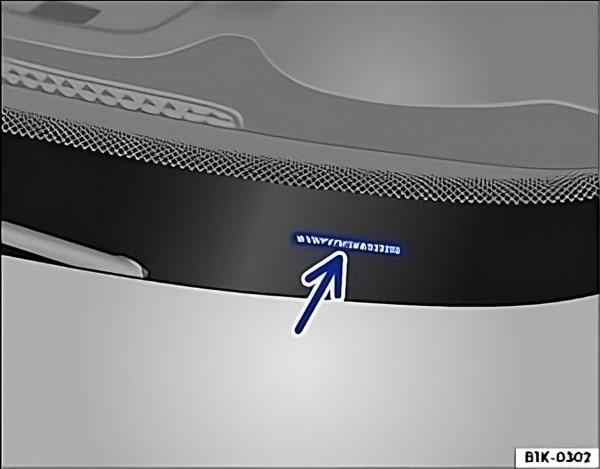

Fig. 16 Vehicle identification number

Fig. 16 Vehicle identification number

First read and observe the introductory information and safety warnings .

Vehicle identification number (FIN)

The vehicle identification number can be read from outside the vehicle through a viewer in the windscreen ⇒ fig. 16 (arrow). The viewer is located in the lower corner of the windscreen. The vehicle identification number is also stamped on the right water drain channel. The water drainage channel is located between the suspension turret and wing. You have to open the bonnet to gain access to the vehicle identification number ⇒ Opening and closing the bonnet.

Vehicle data sticker

The vehicle data sticker ⇒ fig. 15 A is in the spare wheel well area in the luggage compartment. It contains the following data:

Vehicle identification number (chassis number)
Vehicle type, engine power, gearbox type
Engine and gearbox code, paint number, interior equipment. In the example, the engine code is CCZB ⇒ fig. 15.
Optional extras, PR numbers.

These vehicle data are also contained in the service schedule.

Type plate

The type plate ⇒ fig. 15 B can be seen on the lower part of the door pillar when the door is open. Vehicles for certain export countries do not have a type plate.

The type plate contains the following data:

Gross vehicle weight rating
Gross combination weight (vehicle plus trailer)
Gross axle weight rating, front
Gross axle weight rating, rear

Engine data

First read and observe the introductory information and safety warnings .

For reasons of vehicle registration and vehicle taxation, the power output and performance of some engines may vary in some countries from the data given below.

Petrol engines

Engine output	Injection technology	Engine code	Maximum torque	Number of cylinders, displacement
44 kW at 5200 rpm		CGPB	108 Nm at 3000 rpm	3 cylinders 1198 cm3
44 kW at 5200 rpm		CHFA	108 Nm at 3000 rpm	3 cylinders 1198 cm3
51 kW at 5400 rpm		CGPA	112 Nm at 3000 rpm	3 cylinders 1198 cm3
55 kW at 5400 rpm		CJLA	110 Nm at 3750 rpm	3 cylinders 1198 cm3
55 kW at 5000 rpm		CLPB	132 Nm at 3800 rpm	4 cylinders 1398 cm3
63 kW at 5000 rpm		CGGB	132 Nm at 3800 rpm	4 cylinders 1390 cm3
63 kW at 5000 rpm		CLPA	132 Nm at 3750 rpm	4 cylinders 1398 cm3
63 kW at 5000 rpm		CFNB	145 Nm at 3800 rpm	4 cylinders 1598 cm3
66 kW at 4800 rpm	TSI®	CBZC	160 Nm at 1500 - 3500 rpm	4 cylinders 1197 cm3
77 kW at 5000 rpm	TSI®	CBZB	160 Nm at 1500 - 4100 rpm	4 cylinders 1197 cm3
77 kW at 5200 rpm		CLSA	160 Nm at 3750 rpm	4 cylinders 1598 cm3
77 kW at 5600 rpm		CFNA	160 Nm at 3750 rpm	4 cylinders 1598 cm3
103 kW at 6000 rpm	TSI®	CPTA	250 Nm at 1500 - 3500 rpm	4 cylinders 1395 cm3
132 kW at 6200 rpm	TSI®	CAVE CTHE	250 Nm at 2000 - 4500 rpm	4 cylinders 1390 cm3
162 kW at 4500 - 300 rpm	TSI®	CDLJ	350 Nm at 2500 - 4400 rpm	4 cylinders 1984 cm3

Diesel engines

Engine output	Injection technology	Engine code	Maximum torque	Number of cylinders, displacement
55 kW at 4200 rpm without DPF	TDI®	CFWA	180 Nm at 2000 rpm	3 cylinders 1199 cm3
55 kW at 4200 rpm BlueMotion with DPF	TDI®	CFWA	180 Nm at 2000 rpm	3 cylinders 1199 cm3
55 kW at 4000 rpm with DPF	TDI®	CAYA	195 Nm at 1500-2000 rpm	4 cylinders 1598 cm3
66 kW at 4200 rpm with DPF	TDI®	CAYB	230 Nm at 1500-2500 rpm	4 cylinders 1598 cm3
77 kW at 4400 rpm with DPF	TDI®	CAYC	250 Nm at 1500-2500 rpm	4 cylinders 1598 cm3
77 kW at 4400 rpm without DPF	TDI®	CLNA	250 Nm at 1500-2500 rpm	4 cylinders 1598 cm3

Autogas engine

Engine output	Injection technology	Engine code	Maximum torque	Number of cylinders, displacement
60 kW at 5000 rpm		CMAA	126 Nm at 3800 rpm	4 cylinders 1390 cm3
60 kW at 4000-6000 rpm		CNKA	145 Nm at 3800 rpm	4 cylinders 1598 cm3

Dimensions

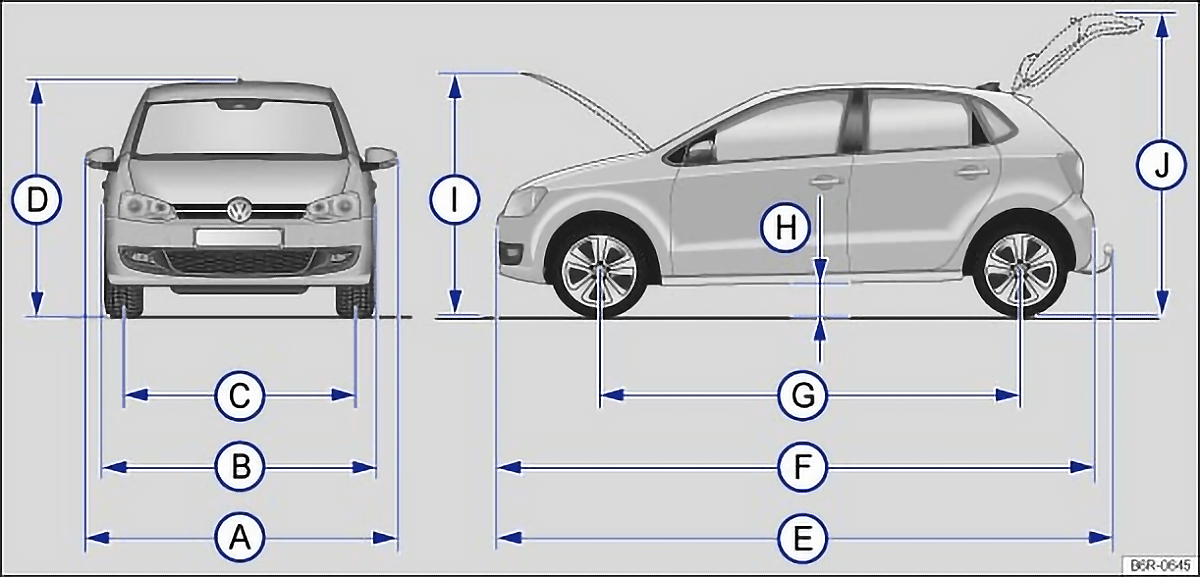

Fig. 17 Dimensions

Fig. 17 Dimensions

First read and observe the introductory information and safety warnings .

The data in the table apply to the most basic German model.

The specified values can vary due to different tyre and wheel sizes, if additional equipment is fitted, for different model versions, for retrofitted accessories, and for special vehicles. They can also vary in vehicles that have been manufactured for other countries.

Key to fig. 17:		Polo	Polo BlueMotion	Polo GTI	Cross Polo
A	Width (from one exterior mirror to the other)	1901 mm
B	Width	1682 mm			1698 mm
C	Front track	1463 mm	1457 mm	1443 mm	1454 mm
C	Rear track	1456 mm	1450 mm	1437 mm	1453 mm
D	Height to the upper edge of the roof at kerb weight ^a)	1462 mm	1465 mm	1452 mm	-
	Height at kerb weight ^a) with navigation aerial	1485 mm	1488 mm	1475 mm	1505 mm
	Height to the upper edge of the roof rails at kerb weight ^a)	-	-	-	1488 mm
E	Length with fitted towing bracket (when factory-fitted)	4064 mm		4070 mm	4077 mm
F	Length (from bumper to bumper)	3970 mm		3976 mm	3987 mm
G	Wheelbase	2456 mm	2455 mm	2456 mm	2459 mm
H	Ground clearance in road-ready state^b) between the axles	153 mm	156 mm	133 mm	176 mm
I	Height with open bonnet at kerb weight^a)	1753 mm	1756 mm	1744 mm	1777 mm
J	Height with open tailgate at kerb weight^a)	2000 mm	2003 mm	1990 mm	2019 mm
	Turning circle diameter	Approx. 10.6 m

^a) Kerb weight without driver, without payload

^b) Kerb weight with driver (75 kg) and service fluids

Performance figures

First read and observe the introductory information and safety warnings .

For reasons of vehicle registration and vehicle taxation, the power output and performance of some engines may vary in some countries from the data given below.

Petrol engines

Engine output	Engine code	Gearbox type	Maximum speed
44 kW	CGPB	5-speed manual gearbox	157 km/h ^a)
44 kW	CHFA	5-speed manual gearbox	157 km/h ^a)
51 kW	CGPA	5-speed manual gearbox	165 km/h^a)
51 kW Bluemotion Technology	CGPA	5-speed manual gearbox	165 km/h^a)
55 kW	CJLA	5-speed manual gearbox	163 km/h ^a)
63 kW	CGGB	5-speed manual gearbox	177 km/h ^a)
	CGGB	7-speed DSG gearbox	177 km/h ^b)
	CLPA	5-speed manual gearbox	177 km/h ^a)
66 kW	CBZC	5-speed manual gearbox	182 km/h ^a)
66 kW		7-speed DSG gearbox	182 km/h ^b)
66 kW Bluemotion Technology		5-speed manual gearbox	182 km/h ^a)
77 kW	CFNA	5-speed manual gearbox	183.8 km/h ^a)
	CLSA	5-speed manual gearbox	186 km/h ^a)
	CBZB	6-speed manual gearbox	190 km/h ^a)
		7-speed DSG gearbox	190 km/h ^b)
77 kW Bluemotion Technology		6-speed manual gearbox	190 km/h ^a)
77 kW Bluemotion Technology		7-speed DSG gearbox	190 km/h ^b)
103 kW	CPTA	5-speed manual gearbox	210 km/h ^a)
103 kW	CPTA	7-speed DSG gearbox	210 km/h ^b)
132 kW	CAVE	7-speed DSG gearbox	229 km/h ^a)
132 kW	CTHE	7-speed DSG gearbox	229 km/h ^a)
162 kW	CDLJ	6-speed manual gearbox	243 km/h ^a)

^a) The maximum speed is reached in 5th gear.
^b) The maximum speed is reached in 6th gear.

Petrol engines in the Cross Polo

Engine output	Engine code	Gearbox type	Maximum speed
51 kW	CGPA	5-speed manual gearbox	161 km/h^a)
63 kW	CGGB	5-speed manual gearbox	173 km/h ^a)
63 kW	CGGB	7-speed DSG gearbox	173 km/h ^b)
66 kW	CBZC	5-speed manual gearbox	178 km/h ^a)
66 kW	CBZC	7-speed DSG gearbox	178 km/h ^b)
77 kW	CBZB	6-speed manual gearbox	188 km/h ^a)
77 kW		7-speed DSG gearbox	188 km/h ^b)

^a) The maximum speed is reached in 5th gear.
^b) The maximum speed is reached in 6th gear.

Diesel engines

Engine output	Engine code	Gearbox type	Maximum speed
55 kW without DPF	CFWA	5-speed manual gearbox	170 km/h^a)
55 kW BlueMotion with DPF	CFWA	5-speed manual gearbox	173 km/h^a)
55 kW with DPF	CAYA	5-speed manual gearbox	170 km/h^a)
66 kW with DPF	CAYB	5-speed manual gearbox	180 km/h^b)
66 kW with DPF		7-speed DSG gearbox	180 km/h^c)
66 kW BlueMotion with DPF		5-speed manual gearbox	180 km/h^b)
77 kW with DPF	CAYC	5-speed manual gearbox	190 km/h^a)
77 kW without DPF	CLNA	5-speed manual gearbox	190 km/h^b)

^a) The maximum speed is reached in 5th gear.
^b) The maximum speed is reached in 4th gear.
^c) The maximum speed is reached in 6th gear.

Diesel engines in the Cross Polo

Engine output	Engine code	Gearbox type	Maximum speed
55 kW without DPF	CFWA	5-speed manual gearbox	166 km/h^a)
66 kW with DPF	CAYB	5-speed manual gearbox	176 km/h^b)
66 kW with DPF	CAYB	7-speed DSG gearbox	176 km/h^c)
77 kW with DPF	CAYC	5-speed manual gearbox	186 km/h^a)

^a) The maximum speed is reached in 5th gear.
^b) The maximum speed is reached in 4th gear.
^c) The maximum speed is reached in 6th gear.

Autogas engine

Engine output	Engine code	Gearbox type	Maximum speed
60 kW	CMAA	5-speed manual gearbox	174 km/h^a)
60 kW	CNKA	5-speed manual gearbox	174 km/h^a)

^a) The maximum speed is reached in 5th gear.

The performance figures were determined without equipment that reduces them, such as a roof carrier or mud flaps.
