Overview of the driver side

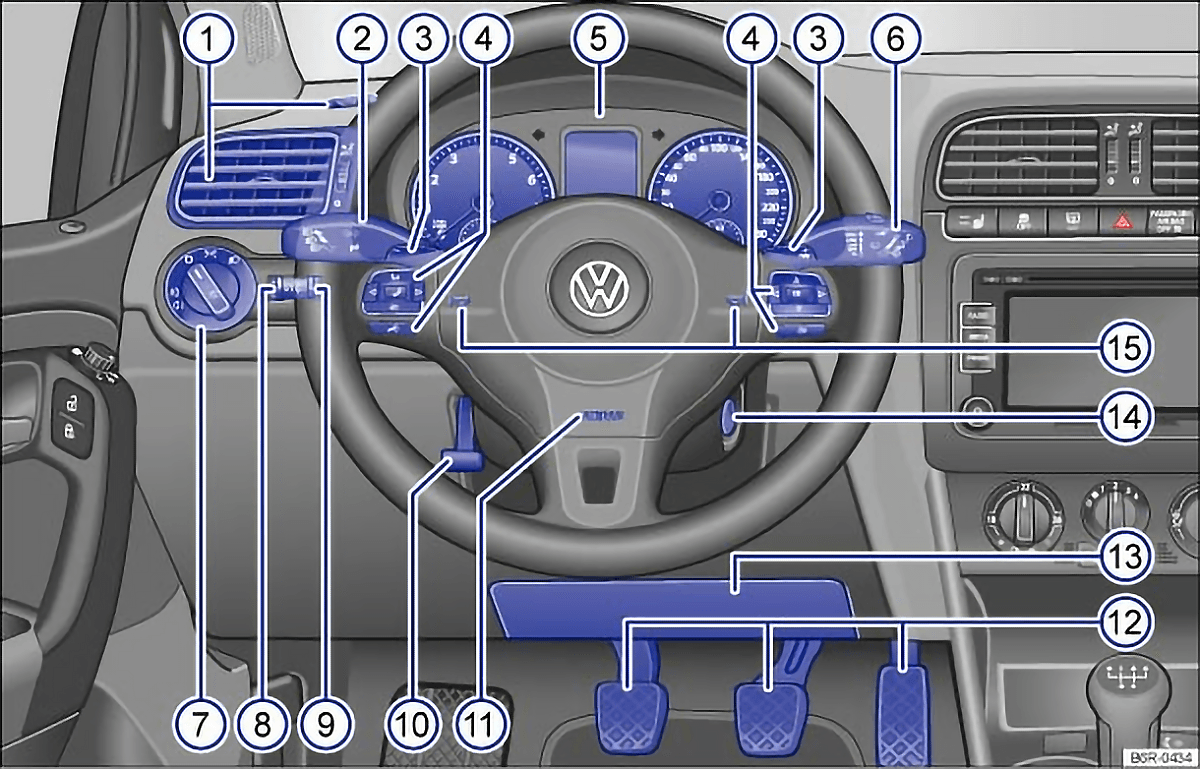

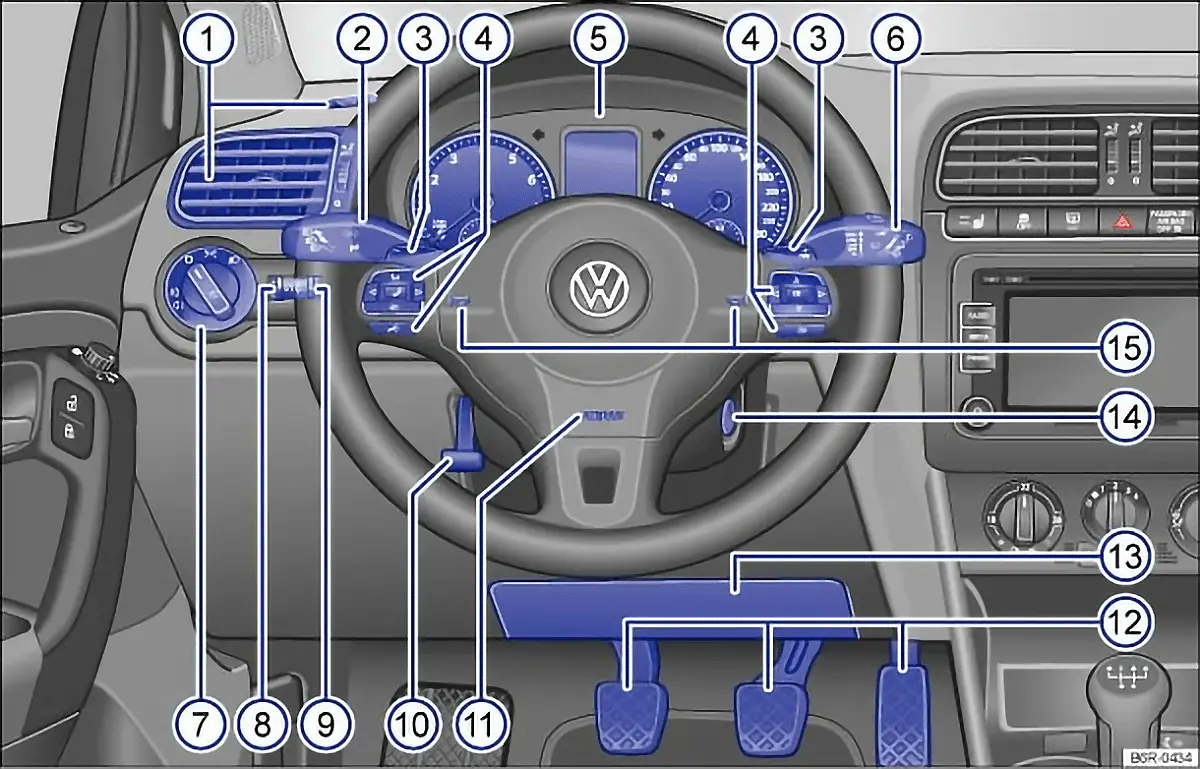

Fig. 5 Overview of the driver side (left-hand drive vehicles)

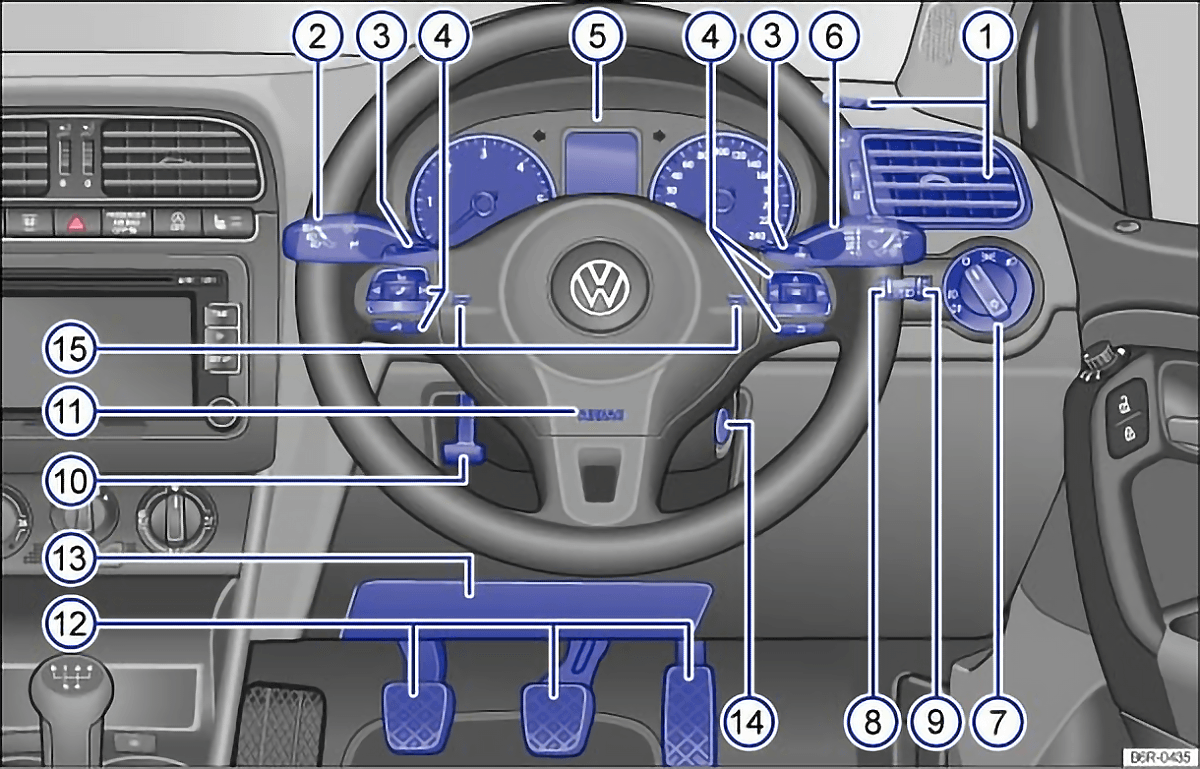

Fig. 6 Overview of the driver side (right-hand drive vehicles)
Key for fig. 5 and fig. 6:
- Vent 0,
- Lever for:
- Main beam headlights
- Headlight flasher 1x
- Turn signal
- Parking light
- Rocker switch for the cruise control system (CCS) ON, CANCEL, OFF, RES/+,, SET/-
- Gear change paddles for Tiptronic
- Controls on the multifunction steering wheel:
- Volume setting for the radio or a telephone conversation -
- Mute function for the radio or activating the voice control system
- Accepting or refusing an incoming telephone call
- Control buttons for the Volkswagen information system - - - - OK -
- Instrument cluster:
- Instruments
- Display
- Warning and indicator lamps
- Windscreen wiper and windscreen wash lever:
Windscreen wipers HIGH, LOW
Interval wipe for the windscreen
Flick wipe 1x
Windscreen wiper
Wash and wipe system for the windscreen
Rear window wiper
Wash and wipe system for the rear window
Rocker switch for the multifunction display TRIP, OK/RESET
- Light switch :
- Light switched off or daytime headlights 0
- Side light and dipped beam headlights ,
- Fog lights ,
- Brightness control for instrument and switch lighting
- Headlight range control
- Lever for adjusting the steering column
- Driver front airbag
- Pedals
- Fuse box cover
- Ignition lock
- Horn (works only when the ignition is switched on)
