Stowage compartments

Introduction

This chapter contains information on the following subjects:

Stowage compartments in the front doors
Stowage compartments in the centre console
Stowage compartment in the front centre armrest
Stowage compartment on the front passenger side
Stowage compartment in the front passenger footwell
Drawers
Other stowage compartments

The stowage compartments must only be used for light or small objects.

There may be a factory-fitted AUX‑IN socket in front of the open stowage compartment in the front centre console.

There may be a factory-fitted multimedia socket (MEDIA‑IN) in the stowage compartment on the front passenger side.

Additional information and warnings

Cleaning and caring for the interior
Radio or navigation system ⇒ booklet Radio or ⇒ booklet Navigation system
⇒ booklet Individual equipment

So that stale air can escape from the vehicle, the ventilation slots below the loading edge and near the first-aid kit must not be covered.

Stowage compartments in the front doors

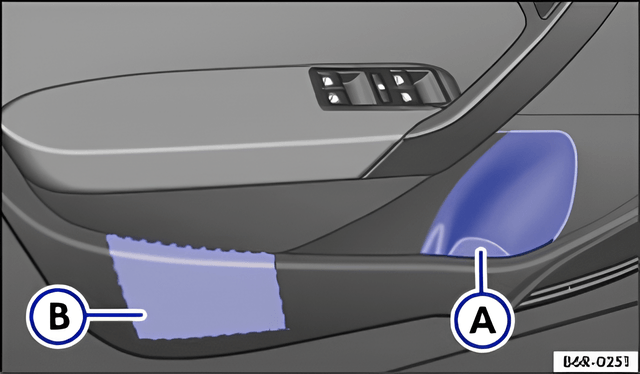

Fig. 95 On the driver side: stowage compartment and cup holder

Fig. 95 On the driver side: stowage compartment and cup holder

First read and observe the introductory information and safety warnings .

There are stowage compartments in the front doors ⇒ fig. 95 that can hold a 1-litre or 1.5-litre bottle A and smaller objects B (e.g. a high-visibility waistcoat).

Stowage compartments in the front centre console

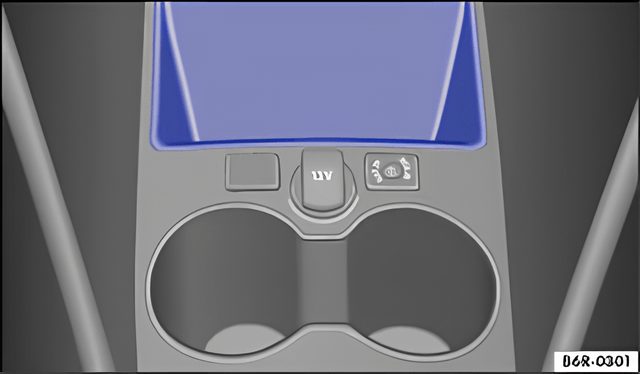

Fig. 96 In the centre console: front stowage compartment

Fig. 96 In the centre console: front stowage compartment

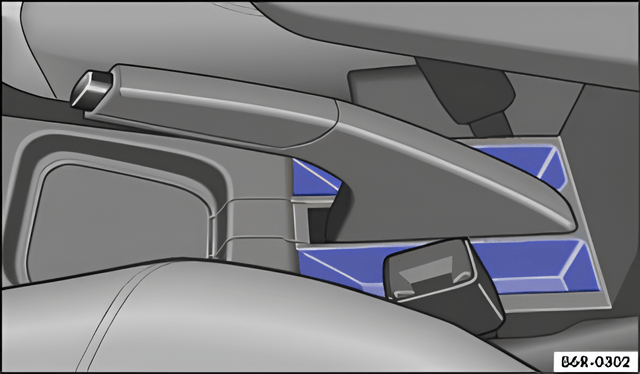

Fig. 97 In the centre console: stowage compartments next to the handbrake lever

Fig. 97 In the centre console: stowage compartments next to the handbrake lever

First read and observe the introductory information and safety warnings .

There is an open, illuminated stowage compartment in the front centre console ⇒ fig. 96.

There are 2 further open stowage compartments next to the handbrake lever ⇒ fig. 97.

Stowage compartment in the front centre armrest

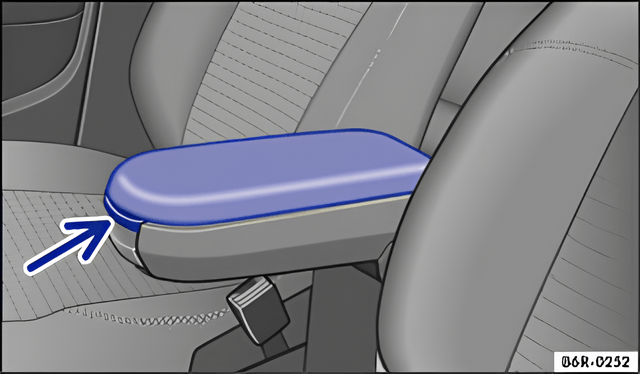

Fig. 98 Stowage compartment in the centre armrest

Fig. 98 Stowage compartment in the centre armrest

First read and observe the introductory information and safety warnings .

To open, press the release button on the centre armrest ⇒ fig. 98 (arrow) and lift the lid all the way up.

To close, push the lid down.

Stowage compartment on the front passenger side

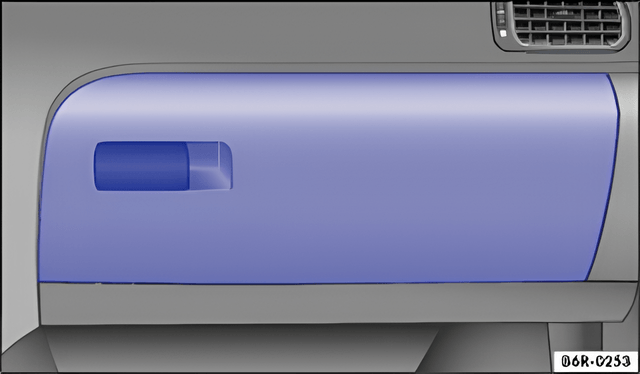

Fig. 99 Stowage compartment on the front passenger side

Fig. 99 Stowage compartment on the front passenger side

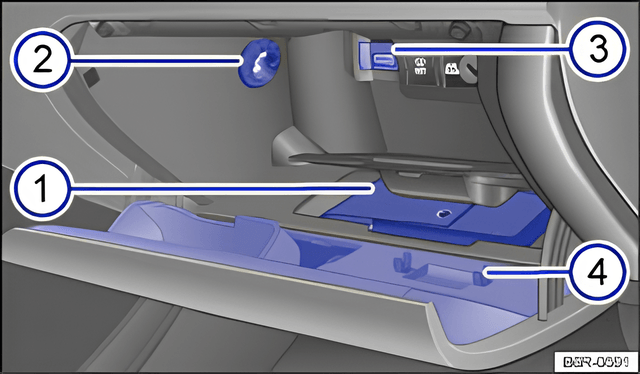

Fig. 100 Open stowage compartment on the front passenger side

Fig. 100 Open stowage compartment on the front passenger side

First read and observe the introductory information and safety warnings .

Opening and closing the stowage compartment

To open, pull the lever ⇒ fig. 99
To close, push the lid up until it engages.

Vehicle wallet stowage compartment

The stowage compartment on the front passenger side is intended to hold the on-board literature.

The on-board literature is kept in the lower part of the stowage compartment ⇒ fig. 100 1.

Always keep the on-board literature in this compartment.

To take it out:

Open the lid.
Take hold of the on-board literature at the side and lift it out.

To put it back:

Place the on-board literature in the compartment.
Close the lid.

Multimedia socket (MEDIA-IN)

There may be a multimedia socket (MEDIA-IN) 3 in the upper part of the stowage compartment ⇒ booklet Radio or ⇒ booklet Navigation system.

Holders

On the inside of the compartment lid 4 there is a glasses compartment, a card holder, a pen holder and a coin compartment.

Cooling the stowage compartment

There is an air vent 2 in the side wall through which cold air can be directed into the stowage compartment when the air conditioning system is switched on. Open or close the air vent by turning it.

Stowage compartment in the front passenger footwell

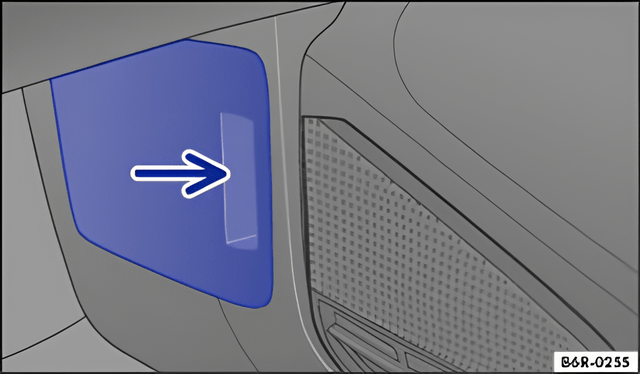

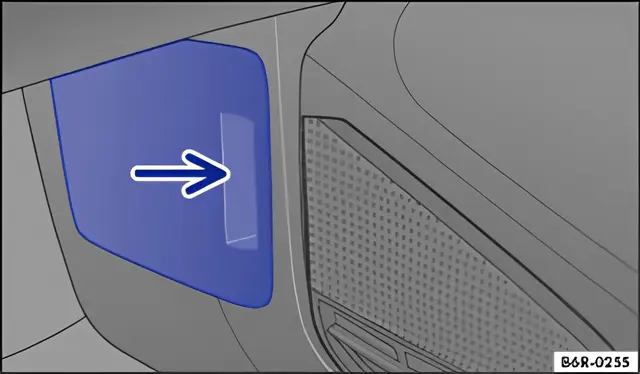

Fig. 101 In the front passenger footwell: compartment for the high-visibility waistcoat

Fig. 101 In the front passenger footwell: compartment for the high-visibility waistcoat

First read and observe the introductory information and safety warnings .

Opening and closing the high-visibility waistcoat stowage compartment

To open, take hold of the handle ⇒ fig. 101 (arrow) and release the cover from its catch.

To close, place the cover in the trim and push it in.

Drawers

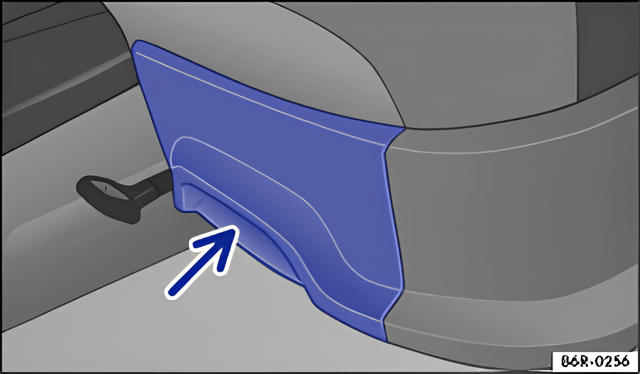

Fig. 102 On the front seat: drawer

Fig. 102 On the front seat: drawer

First read and observe the introductory information and safety warnings .

There may be a drawer under each front seat

Opening or closing the drawer

To open, press the button on the drawer handle ⇒ fig. 102 (arrow) and pull the drawer out.

To close, push the drawer in under the front seat until it engages.

Other stowage compartments

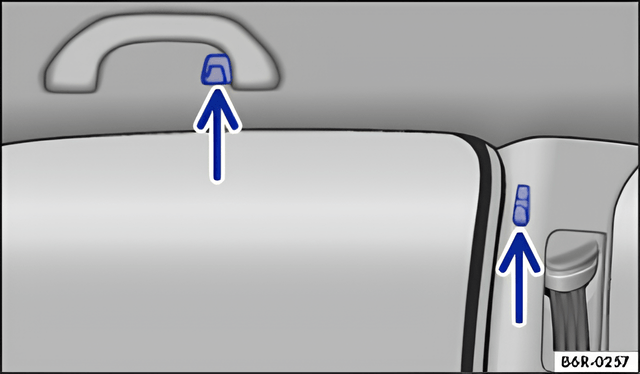

Fig. 103 In the roof lining: coat hooks

Fig. 103 In the roof lining: coat hooks

First read and observe the introductory information and safety warnings .

Coat hooks in the roof

There are coat hooks on the centre door pillar and on the rear grab handles in the roof lining ⇒ fig. 103 (arrows).

Other stowage areas

In the rear door trim
In the pockets on the backs of the front seats
Bag hook
