Doors
Introduction
Section titled “Introduction”This chapter contains information on the following subjects:
Additional information and warnings
Section titled “Additional information and warnings”Warning lamp
Section titled “Warning lamp”First read and observe the introductory information and safety warnings .
| Lit up | Possible cause | Solution |
|---|---|---|
| At least one vehicle door is opened or not properly closed. | Do not drive on! Open the appropriate vehicle door and then close it again. |
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will switch off after a few seconds.
A warning lamp appears in the instrument cluster display if a door is open or not properly closed.
Childproof lock
Section titled “Childproof lock”

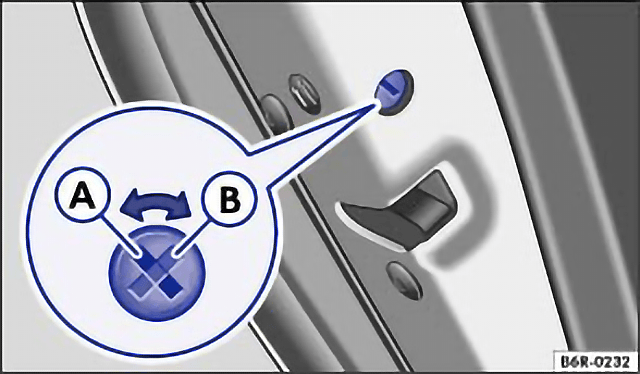

Fig. 27 In the left rear door: childproof lock A switched off, B switched on.

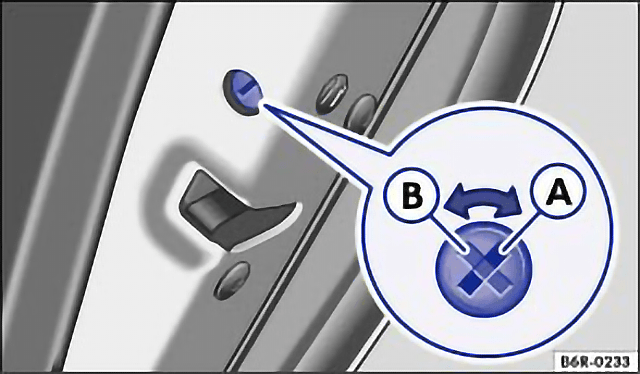

Fig. 28 In the right rear door: childproof lock A switched off, B switched on
First read and observe the introductory information and safety warnings .
The childproof lock prevents the rear doors from being opened from the inside, e.g. so that children cannot open the doors accidentally while the vehicle is in motion. When the childproof lock is activated the door can only be opened from the outside.
Switching the childproof lock on or off
Section titled “Switching the childproof lock on or off”- Unlock the vehicle and open the appropriate rear door.
- Fold the key bit out of the vehicle key.
- Use the key bit to turn the slot to the required position.
Slot position A or B:
- A Childproof lock is switched off.
- B Childproof lock is switched on.
