Sun visors
Introduction
Section titled “Introduction”This chapter contains information on the following subjects:
Sun visors
Section titled “Sun visors”

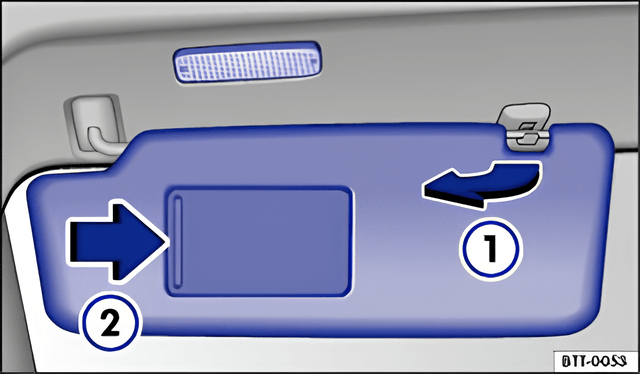

Fig. 71 Sun visor
First read and observe the introductory information and safety warnings .
Various positions for the driver and front passenger sun visors
Section titled “Various positions for the driver and front passenger sun visors”- Fold down towards the windscreen
- Take out of the holder and swing towards the door ⇒ fig. 71 1
Vanity mirror light
Section titled “Vanity mirror light”There is a vanity mirror under a cover in the folded-down sun visor. A lamp lights up when cover 2 is slid open.
The lamp goes out when the vanity mirror cover is slid shut, or when the sun visor is folded up.
Under certain conditions, the lamp above the sun visor goes out automatically after a few minutes. This protects the vehicle battery against discharging.
Insulating glass windscreen
Section titled “Insulating glass windscreen”

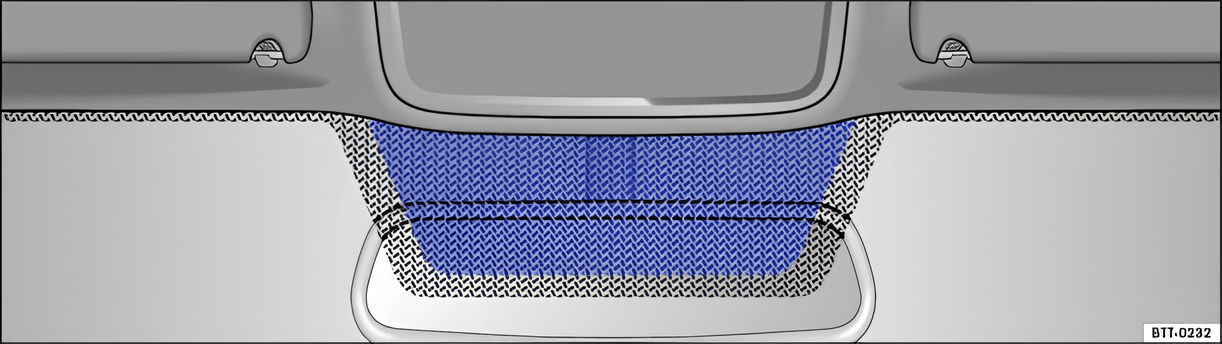

Fig. 72 Windscreen with reflective metallic coating and communication window (blue area)
First read and observe the introductory information and safety warnings .
Tinted windscreens have a coating that reflects infrared radiation. So that electronic devices from the aftermarket accessories range can still function, there is an area free of this coating (communication window) above the interior mirror fig. 72.
The uncoated area must not be covered from the outside or the inside, and no stickers may be applied to it, as this could cause the electronic components to malfunction.
