VW Polo 6R Owner's Manual

Overview of the centre console

Upper section of the centre console

Section titled “Upper section of the centre console”

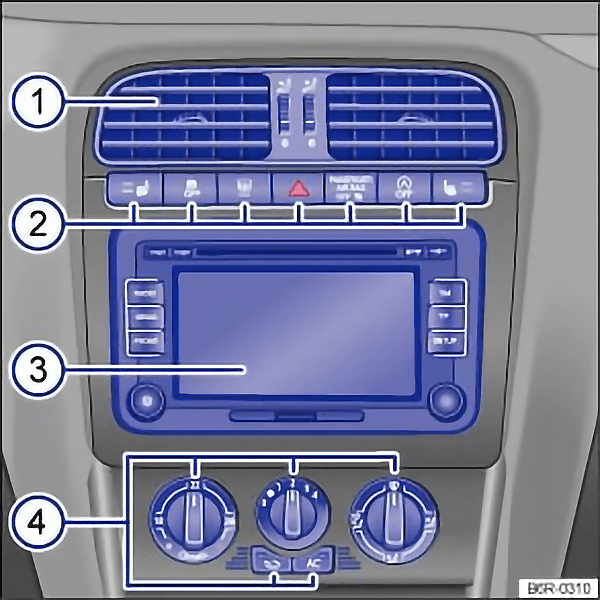

Fig. 7 Overview of the upper section of the centre console

Fig. 7 Overview of the upper section of the centre console

Key for fig. 7:

  1. Vent 0, Air vents
  2. Button for:
    • Seat heating for the left Left seat heating and right Right seat heating
    • Traction control system (TCS) Traction control system (ASR)
    • Rear window heating Heated rear window
    • Hazard warning lights Hazard warning lights
    • Indicator lamp for the front passenger front airbag switch-off function (or the windscreen heating switch)
    • Start/stop system
    • Button for switching to autogas mode GAS
  3. Radio or navigation system (factory-fitted)
  4. Controls for:
    • Heating and fresh air system
    • Air conditioning system (manual)
    • Climatronic

Lower section of the centre console

Section titled “Lower section of the centre console”

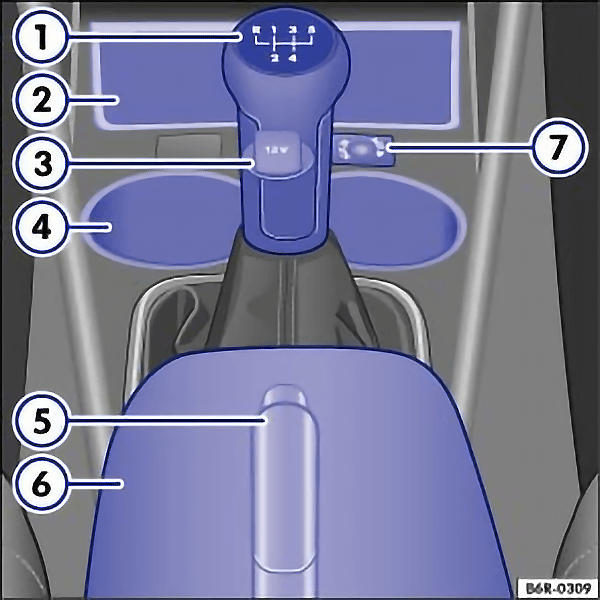

Fig. 8 Overview of the lower section of the centre console

Fig. 8 Overview of the lower section of the centre console

Key for fig. 8:

  1. Lever for:
    • Manual gearbox
    • Automatic gearbox
  2. Stowage compartment in the front centre console
  3. 12-volt socket
  4. Drink holder
  5. Handbrake
  6. Stowage compartment in the centre armrest
  7. AUX-IN socket
