Seat functions

Introduction

This chapter contains information on the following subjects:

Seat heating

Additional information and warnings:

Seat heating

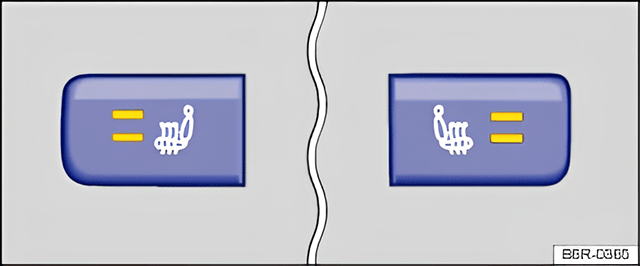

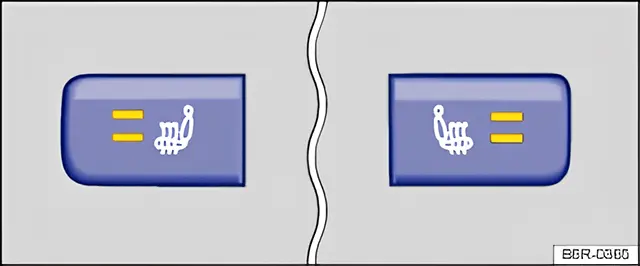

Fig. 43 In the centre console: buttons for the front seat heating

Fig. 43 In the centre console: buttons for the front seat heating

First read and observe the introductory information and safety warnings .

The seat cushions on the front seats can be heated electrically when the ignition is switched on. In some versions, the backrests may also be heated.

Do not switch on the seat heating if one of the following conditions applies:

The seat is not in use.
The seat is fitted with a protective cover.
A child seat is installed on the seat.
The seat cushion is damp or wet.
The interior or exterior temperature is above 25°C (77°F).

Function	Action
Switching on:	Press the button. The seat heating is switched on at maximum level and all indicator lamps in the button are lit up ⇒ fig. 43.
Adjusting the heating output:	Press the button repeatedly until the desired heating level is set.
Switching off:	Press the button until the indicator lamps in the button go out. OR: switch off the ignition.

Function

Action

Switching on:

Press the button. The seat heating is switched on at maximum level and all indicator lamps in the button are lit up ⇒ fig. 43.

Adjusting the heating output:

Press the button repeatedly until the desired heating level is set.

Switching off:

Press the button until the indicator lamps in the button go out.

OR: switch off the ignition.

If the second temperature level has been switched on for more than 15 minutes, it will automatically switch to the first temperature level. Only one indicator lamp will be lit up.

The seat heating should be switched off as soon as it is no longer needed. Fuel is otherwise wasted.
